Company: Forge Motorsport

Suzuki, Toyota, and Lexus Wheel Spacer

Product code: FMWS601
£25.29 £19.82 Estimate Delivery

Please select options and qty below:

Check your vehicle compatibility

Currency Converter Currency Converter

Prefer to talk over the phone? Call us +886-4-22516887

Description

Product Description

Before fitment, please ensure the spacer fits flat to the back of the wheel. Please also test for clearance after fitment at the wheel arch under full right and left wheel lock.

These spacers are suitable for many Suzuki, Toyota and Lexus vehicles, but please check the compatibility list below or contact us to be sure.

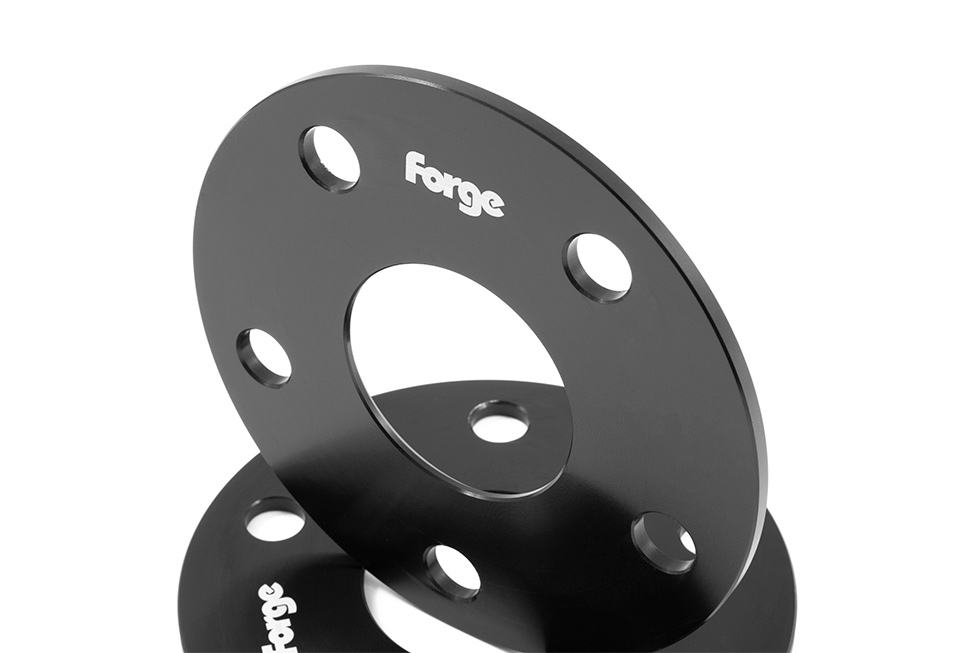

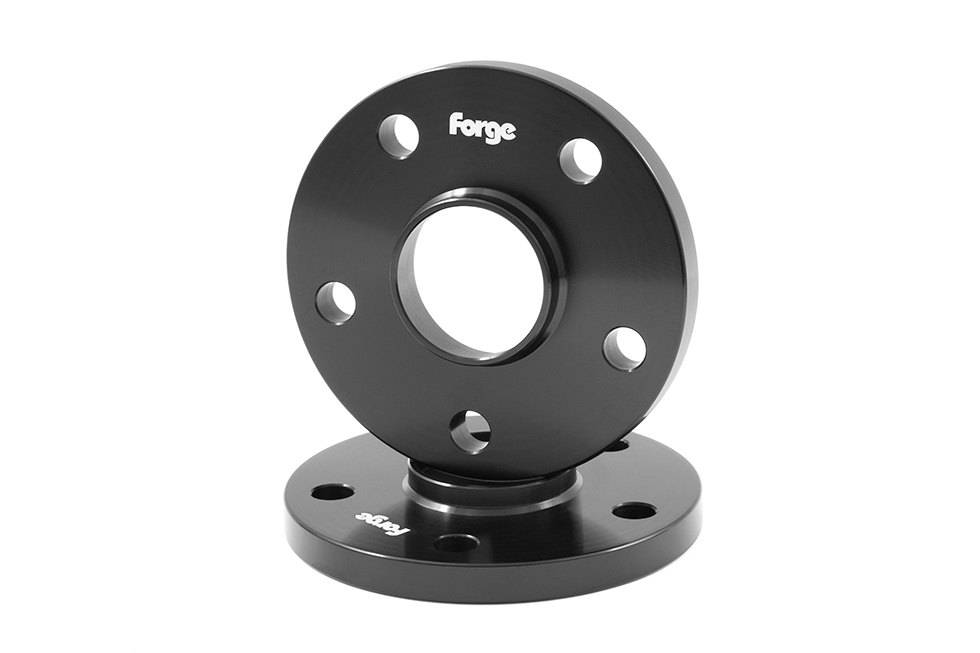

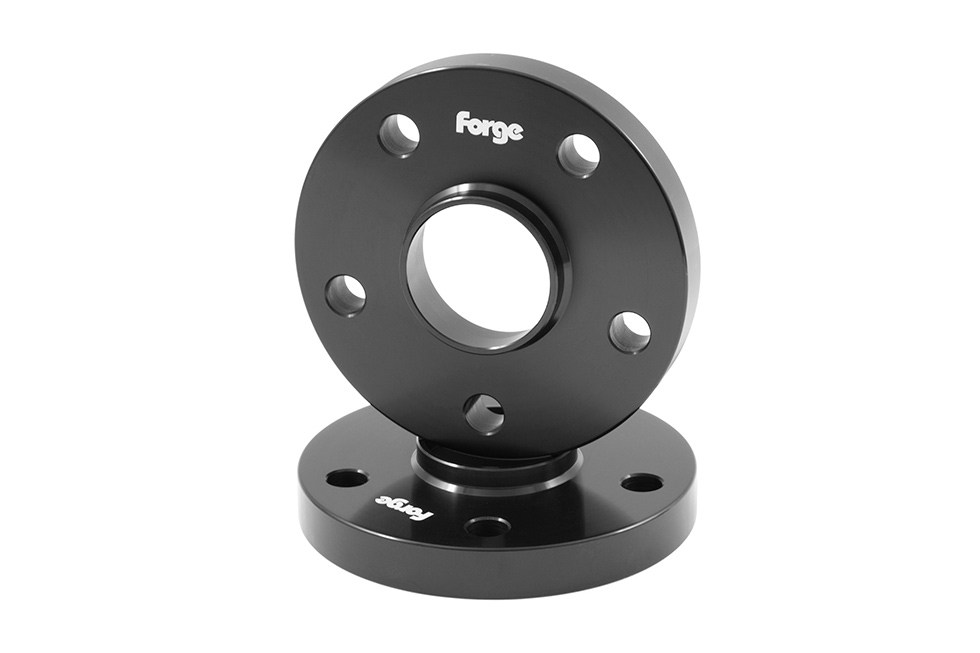

These CNC machined precision alloy wheel spacers are available in 5mm, 15mm, and 20mm thickness with a 60.1mm bore and 5 x 114.3mm PCD stud bolt pattern. The Forge spacers can give a maximum of 40mm increase in track width.

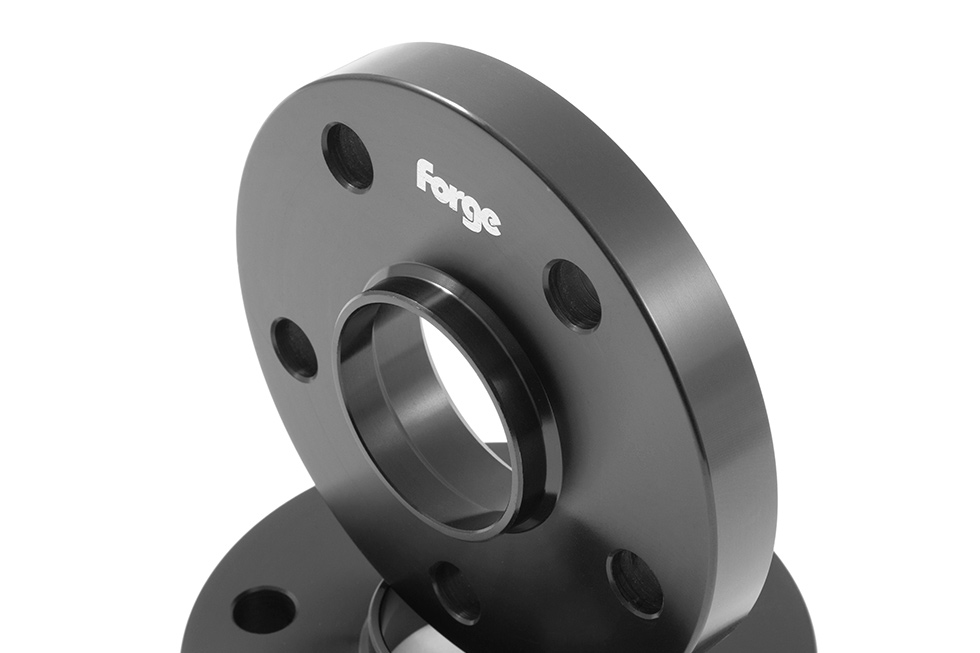

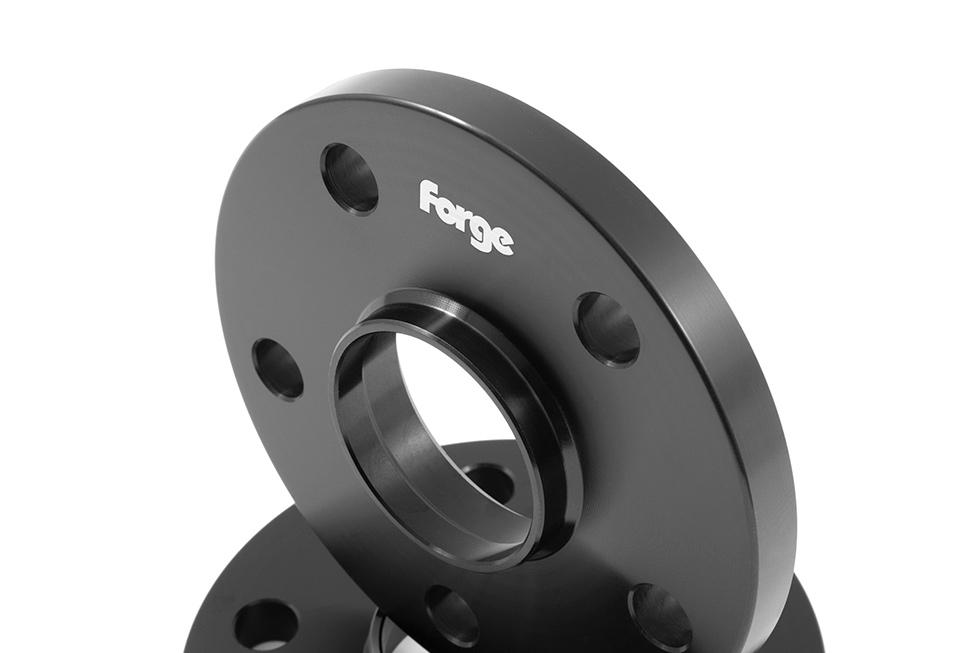

Machined in the UK and anodised black to inhibit corrosion and "bonding" to the wheel or hub, 15mm and 20mm are machined with an alloy spigot to allow centering on the hub (often called "hubcentric" spacers). Sizes 15mm and 20mm are hubcentric and 5mm are not hubcentric.

PLEASE NOTE: Extended wheel bolts/ studs are not included

Please choose required size from the drop-down list. These are sold as a pair. Extended wheel bolts are not supplied.

In the Box:
2 x Wheel Spacer
1 x Forge Sticker

All Forge wheel spacers are manufactured from 6082 alloy



Application List:

Chery Tiggo (2005-) (45 Offset)

Fiat Sedici (2006-2016) (50 Offset)

Lexus GS300 (1998-2005) (50 Offset)

Lexus GS300 (2005-2012) (45 Offset)

Lexus GS450H (2012-) (43 Offset)

Lexus IS F (2008-) (45 Offset)

Lexus IS200 (2000-2005) (50 Offset)

Lexus IS250 (2006-2013) (50 Offset)

Lexus IS300 (2001-2006) (50 Offset)

Lexus IS300h (2013- (50 Offset)

Lexus LS400 (1995-2000) (50 Offset)

Lexus LS430 (2001-2006) (45 Offset)

Lexus RX300 (1997-) (35 Offset)

Lexus RX330 (2003-2009) (35 Offset)

Lexus RX350 (2006-2009) (35 Offset)

Lexus RX400h (2003-2009) (35 Offset)

Lexus SC430 (2001-2010) (50 Offset)

Suzuki Grand Vitara (2005-) (45 Offset)

Suzuki Kizashi (2009-) (45 Offset)

Suzuki S-Cross (2013-) (50 Offset)

Suzuki Swift Sport (2006-2017) (45/50 Offset)

Suzuki SX4 (2006-) (50 Offset)

Suzuki SX4 Cross (2013-) (50 Offset)

Suzuki Vitari (2015-2019) (50 Offset)

Toyota Auris (2007-) (45 Offset)

Toyota Avensis II 2.2 Diesel (2005-2008) (45 Offset)

Toyota Avensis III (2008-) (45 Offset)

Toyota Avensis Verso (2001-2005) (45 Offset)

Toyota C-HR (2016-) (45 Offset)

Toyota Camry (1992-2011) (45 Offset)

Toyota Corolla (2007-) (45 Offset)

Toyota Corolla Verso (2004-2009) (45 Offset)

Toyota Highligher (2008-) (45 Offset)

Toyota MR2 (1989-1999) (45 Offset)

Toyota Picnic (1996-2009) (45 Offset)

Toyota Previa (1990-) (45/50 Offset)

Toyota Prius Wagon (2012-) (45 Offset)

Toyota Rav4 (1995-) (45 Offset)

Toyota Supra Mk3 (1986-1993) (37 Offset)

Toyota Supra Mk4 (1992-2002) (50 Offset)

Toyota Verso (2009-) (39 Offset)



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Product Reviews

Product Reviews

Be the first to review this product

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +44 1452 380999 or email us.

Suzuki
Universal

Warranty

All Forge Motorsport products come with a limited lifetime warranty. All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please contact our customer service team.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
