Toyota Corolla GR Inlet Duct

Product Description

• Lower inlet air temperatures (IAT's)
• Massive increase of OEM part
• Extensively tested
• Easy install

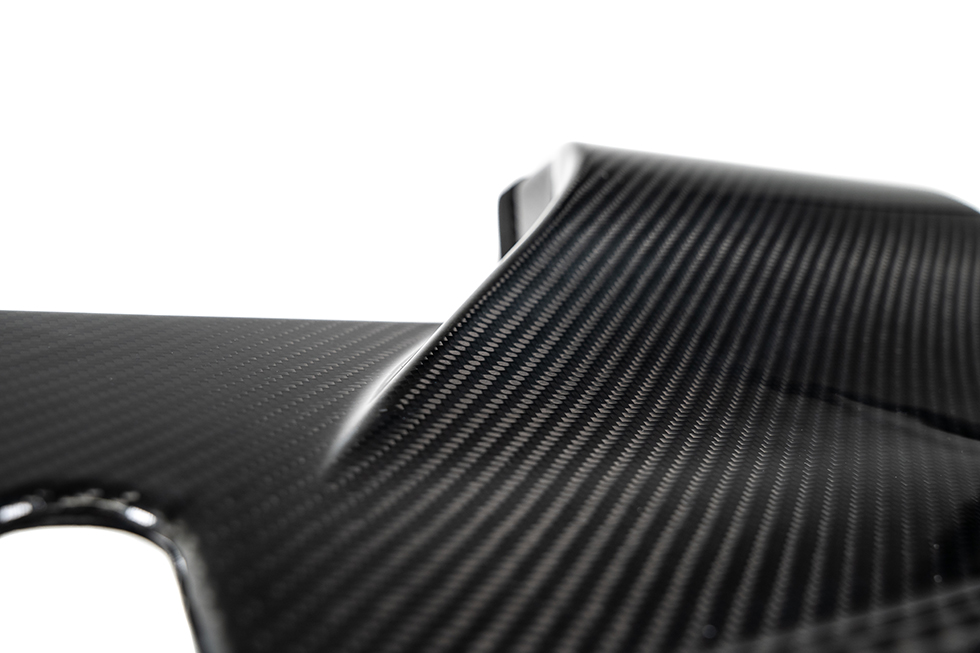

• Prepreg 2x2 twill formed carbon fibre
• Lifetime warranty

With the success of FMINLD1 for the Yaris GR we knew that there was a great opportunity to replicate the performance and aesthetic enhancement with the Corolla GR. The Forge Motorsport inlet duct fits the factory lower airbox and focuses on keeping your inlet temperatures down during spirited driving or while on the track/rally stage.

By utilising 3D scans and SolidWorks CAD, our development team have been able to optimise the size of the inlet duct, creating an increase in uninterrupted cold air to be scooped into the stock airbox. 3D printed test parts were used alongside CAD simulation to ensure the optimum size and geometry. This inlet duct is much larger than stock, by replacing the entire shroud and effectively creating one large inlet duct to feed as much cold air into the OEM lower airbox.

During testing on track days, the original duct caused inlet air temperatures to be heavily influenced by heat soak and fluctuated dramatically. Meanwhile the Forge Inlet Duct kept the inlet air temperatures not only reduced but at a more consistent temperature. A reduced consistent temperature is of great importance because any high temperature peaks will cause the ECU to retard the ignition and reduce the power you have available.

The Forge inlet duct design incorporates a free-flowing path to both the upper and lower opening of the airbox, whereas the stock design has no flow management to the lower opening and the upper is small and not fully sealed. It is worth understanding that the lower opening is of far greater importance to the performance of your Yaris GR. There is a vacuum operated flap which is activated when under full throttle conditions, therefore the Forge Motorsport Inlet Duct ensures that your Yaris is getting colder directed air when the engine needs it the most.

With the OEM design including open sections, baffles, and noise restrictors to disrupt the airflow, the Forge Inlet Duct is part of our acclaimed Hi Flow range and will ensure that your Corolla GR is receiving critical cold air. Not only is the Forge Inlet Duct a better option for performance, but the carbon fibre really helps to give the engine bay some character. The high-quality carbon fibre is prepreg 2x2 twill formed in an autoclave from billet tooling and finished with an anti UV gloss gel coat. The Forge Motorsport lifetime warranty on all hardware products shows the trust we have in the quality of our products while they are being enjoyed on your pride and joy.

Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
