Company: Forge Motorsport

Direct Fit Piston Recirculation Valve

Product code: FMDVK04S

Please select options and qty below:

Check your vehicle compatibility

How to Service Your Valve

Currency Converter Currency Converter

Prefer to talk over the phone? Call us +886-4-22516887

Description

Product Description

  • CNC machine body and internals
  • Tuneable, for different boost pressures
  • Serviceable, for lifetime use
  • Easy Fit, full step by step installation instructions provided
  • Utilising world leading springs for more precise operation and consistency
  • Assembled with heat stabilised Viton O rings
  • Lubricated with Mobil 1 high temp grease
  • Covered by the unique Forge Lifetime Warranty *

This recirculating valve is a direct replacement for the OEM valve but offering a level of reliability that is second to none!  The vacuum nipple is position is angled making the upgrade/replacement seamless. We take pride in producing valves that have significant advantages over to original equipment: the body and internals are machined in our workshop in Gloucester, UK. They are then hand polished or anodised black for the stealthy appearance.

If stealthy isn’t your style and you want the infamous dump valve noise, take a look at our atmospheric version: FMDVK04SA

Please note for Porsche 997 Generation 1, x2 FMDVK04S's are required.

*Product demonstrated in the photo above fitted to the turbo features FMDVK04D, the same valve with a top exit vacuum nipple

The OEM valve uses a rubber diaphragm and a plastic housing. Both of these materials, but especially the rubber is prone to failure. The rubber can stiffen and go brittle due to the heat from the engine, resulting in the diaphragm splitting and boost leak.

Our valve uses full billet alloy construction with a piston based internal design, meaning the issues with the OEM can never happen with ours! To give you even more peace of mind, we made the internals of our valve serviceable. We recommend doing these every 3 years or 20,000 miles, whichever comes first. However, if you don’t want to service your valve yourself you can order the kit and ship your valve back to us and we will carry out the service free of charge! Simply contact us to arrange the service!

The OEM valve internals can also fail if you have your vehicle mapped as the rubber diaphragm is not always strong enough to cope with the increased boost pressure. We build our valves with a spring matched to the original pressure of the car but include in the kit a spring strong enough to cope with a stage one remap. If you decide to increase the power even more, you can guarantee the reliability of our valve by using this spring tuning kit!

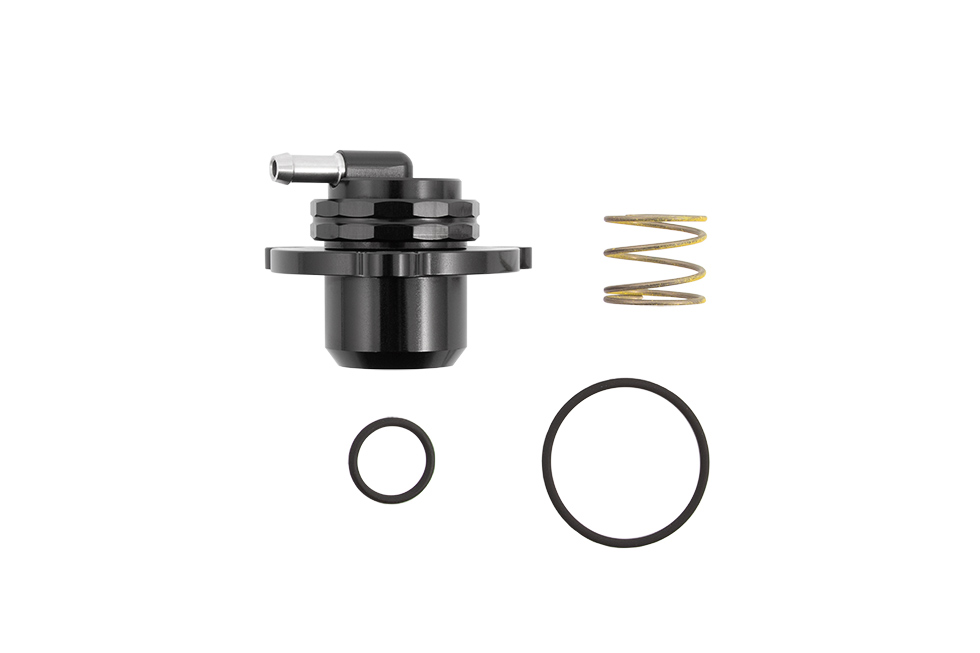

In the Box
1 x FMDVK04S Valve
1 x Uprated Yellow Spring
1 x Forge Sticker



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Product Reviews

Product Reviews

Be the first to review this product

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +44 1452 380999 or email us.

Buick
Chevy
Ford
Opel
Pontiac
Porsche
Range Rover
Saturn
Volvo

Instructions

Warranty

All Forge Motorsport products come with a limited lifetime warranty. All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please contact our customer service team.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
